Camera Focusing

Prepare Camera

Warning

Refocusing your camera will make your calibration inaccurate, make sure to recalibrate after focusing.

To ensure that your camera is focused properly, mount it to a secure surface and ensure it does not move drastically. Point your camera at a detailed surface like a calibration board, and make sure that it not too close to the camera.

Using Focus Mode

Important

When you enable Focus Mode, it will assign a Score to the current focus, this score depends on your environment and the lighting. This score cannot be compared to a focus score collected from other environments.

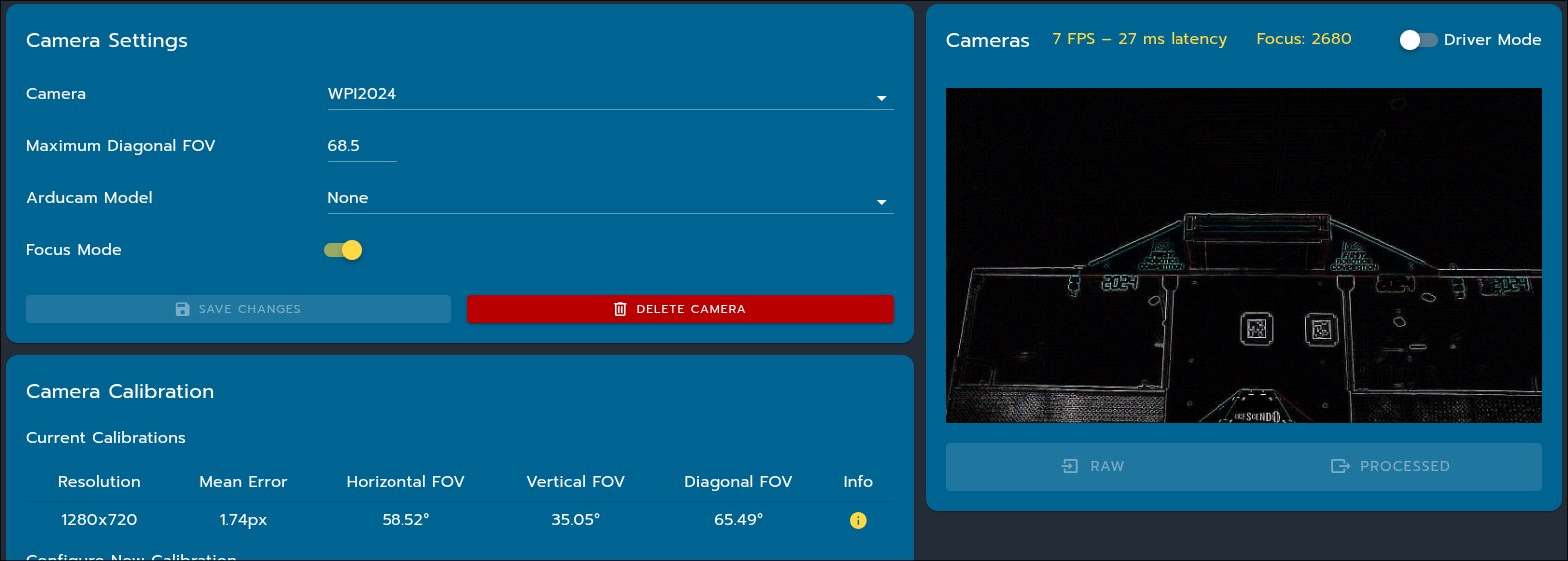

In the Cameras tab, turn on Focus Mode.
Rotate the lens on your camera to try and get the focus score as high as possible.
Once you cannot get a higher score, this indicates that your camera is fully focused and can be set in place using glue if desired.
